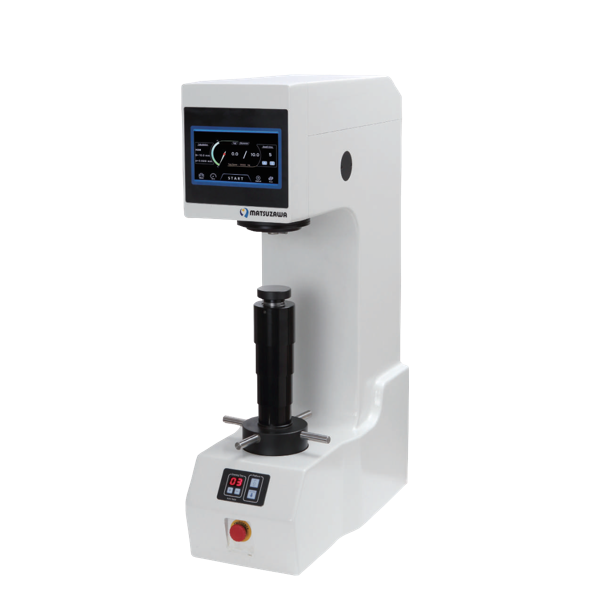

MarBle Brinell Hardness Tester with full color LCD touch panel, closed-loop test-force control and optional auto elevating / auto reading system.
Good visibility, easily confirm the test situation
Automatically measures indentation diameter and calculates Brinell hardness
Width 240 mm
Depth 534 mm
Height 831 mm
Weight 122 kg
.png "Marble6")
| Item | Auto Measuring | Field-of-view | 8.4mm x 6.4mm |
| Configuration | Reader, PC, Controller, Connection Cable | Resolution | 0.01mm or less |
| PC Type | Desktop/Laptop/Tablet PC | Software | Windows 10 based software |
| Camera | 1.3M USB3.0 | Reading Methods | Approximate 2 or 4 diameters |
| Lens | Telecentric Lens | Light Control | Automatic |
| Illumination | LED epi-illumination | Controller | Controller for manual measurement |
| Machine Name | MarBle |
| Test Type | Brinell Hardness Tester |
| Display | Full Color LCD Touch Panel |
| Test Force | 62.5 – 3000 kgf |
| Force Control | Closed Loop Control |
| Dwell Time | 5 ~ 60s |
| Standard | JIS Z 2243, JIS B 7724, ASTM E10, ISO 6506-1, ISO 6506-2 |
| Specimen Size | Max. Height 246mm, Max. Depth 153mm |
| Power Supply | AC100 – 240V, 50/60Hz |
| Data Output | RS-232C, Data Memory Max. 20 |
| Statistics | Max., Min., Average, Standard Deviation |
| Optional | Auto Elevating Function |
| Automation of Lifting Operation and Measurement |
| Indenter | B001 10mm Carbide Ball Indenter |
| Anvil | B011 100mm Flat Anvil |
| B012 90mm V-shape Anvil | |
| Others | C031 Power Cord |
| V161 Machine Cover | |
| Instruction Manual |
| Standard Block | Various Standard Blocks |
| Indenter | B002 5mm WC Ball Indenter |
| B003 2.5mm WC Ball Indenter | |
| Anvil | B013 200mm Round Table |
| B014 250mm Round Table | |
| B015 300mm Round Table |
Contact us today to inquire about the MarBle Brinell Hardness Tester and enhance your hardness testing capabilities.
