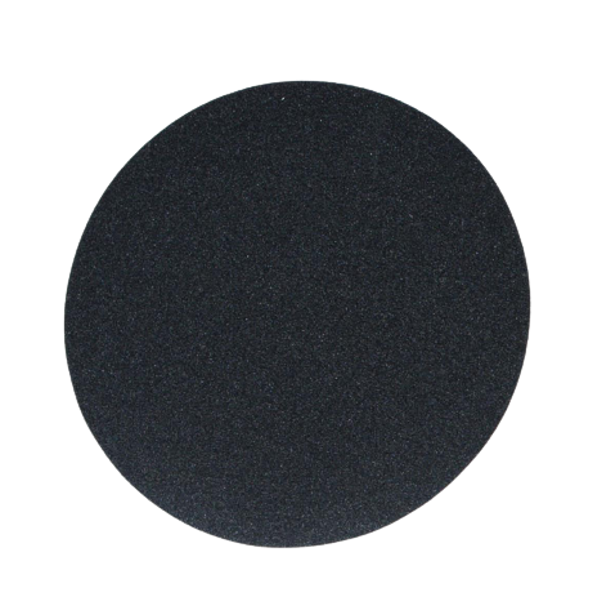

MTDI Grinding Consumables (Sic Paper 8″), G400/P800/21.8um, Adhesive Back MP-SP-08-P800A Series

MTDI MP-SP-08-P800A Sand Paper(SiC) is the Abrasive with adhesive back which minimize damage on surface, maximize cut rate MSP Metrology Sdn Bhd from MTDI Korea

Features

Grinding And Polishing Process

Polishing is important process of sample preparation. Procedure can be divide 2 stage. First is Grinding(kind of Cutting) Second is Polishing(kind of gloss)
These two stage conduct by various material’s property
The scratch by Sectioning has to remove during the Grinding and Polishing
Even Perfect sectioning make scratch on the specimen. So during the grinding, user have to remove scratch.
Grind should be start from bold particle. Sand Paper Grit 150 and 180 is enough stage for remove scratch which occurred during abrasive cutting
Sand Paper use for Grinding procedure. Recommended process include (180), 240, 320, 400, 600 Grit
There are 3 units so Seller should be exact unit for customer

International Grit	120G	180G	240G	320G	360G	400G	600G	800G	1200G
(P-grade)	P120	P180	P220	P320	P500	P800	P1200	P2400	P4000
(μm)	106	75	58.5	40.5	30.2	21.8	15.3	6.5	2.5

Sand Paper(SiC)

Sand Paper(SiC) is the Abrasive which minimize damage on surface, maximize cut rate
Sand Paper(SiC) is divided to PSA and Plain back. Use from 60 Grit to 1200 GritPSA back has adhesive type so stick paper on the Polisher Disc
Plain back is cheaper than PSA but require Fixation Ring for fix on the Disc
Kind of Sand Paper divided to Normal and Premium type. MTDI provide 8, 10, 12inch size

Adhesive-back type

Full Specifications

Model	Description	Pack
MP-SP-08-P800A	Sic Paper 8” 400Grit/P800/21.8µm, Adhesive back	100sheet
